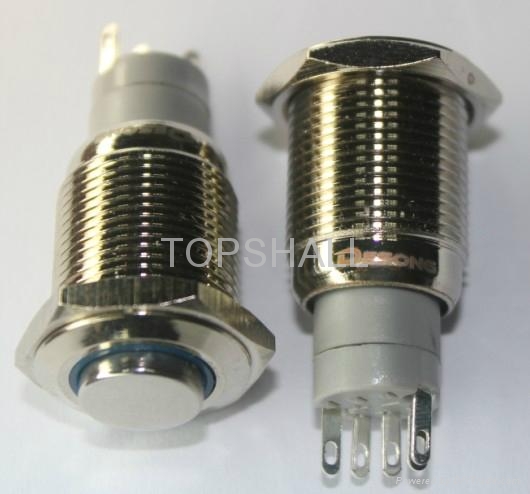

| ◆ Mounting hole:Φ16mm |
◆Shape of top:Round/High/Flat shape |
| ◆ Voltage class：250V |
◆Buttom accesories:Wiring inser(2.8x0.4mm) |
| ◆Rated current:3A |
◆Dielectric Strength:2000VAC |
| ◆Contact resistance:≤50mΩ |
◆Operation Temperature:-20℃~+85℃ |
| ◆ Insulation resistance: ≤1000mΩ |
◆Thickness of panel:1 ～ 10mm |
| ◆ Material of frame: SUS/Brass |
◆Nut Length:5 ～ 14Nm |
| ◆ Protection level:IP40,IP65, IP67,IK10 |
◆Function:OFF-ON,OFF-(ON)，Reset,Lock,No Lock etc |
| ◆ Brand manufacturer: TOPSHALL |
