Model No.︰R-6
Brand Name︰TS
Country of Origin︰China
Minimum Order︰1000 pc
Share on:

 Total 8 Related Items
12345Next

Product Description
R SERIESROCKER SWITCHES UP TO 20A 125VAC 3/4HP 250V, 16(8)A WITH APPOVALSSoftoutlook,illuminated or non-lighted, splash-proof cover

  • DOUBLE POLES ROCKER SWITCHES
  • Illuminated or non-illuminated
  • splash proof cover available
  • 30A 125/250VAC,65℃(UL/CUL)-on-off-on
  • 30A 125/250VAC 1/4HP (UL,CSA NRTL/C)
  • 30A 125VAC, 3/4HP 250VAC (UL)
  • 30A 125VAC /30A 250VAC,                3/4HP 125/250VAC T105 (UL/CUL)
  • 30(4) 250V~T125 1E4, 10(2)A 250V~5E4 (VDE, ENEC)
  • 30(8)A 250V~T125  (VDE,ENEC)
  • 30(4)A 250V~T125  1E4  (CQC)
  • 10(2)A  250V~T125  5E4 (CQC)
  • Initial contact resistance : 20m ohm max.
  • Insulation resistance : 100M ohm min, at 500VDC
  • Dielectric strength : 1,000 VAC for 1 minute
  • Electrical life : 30(4) A 250VAC : 10,000 cycles
  • 10(2) A 250VAC : 50,000 cycles
  • Temperature range : -20 to + 125 degrees in Celsius
  • Switch for Class II appliances
  • Base : Nylon 66, UL rated : 94V-2 min
  • Actuator : Nylon 66 /PC, UL rated 94V-2 min
  • Spring : Piano wire
  • Contacts : Silver copper alloy
  • Terminals : Silver copper alloy
  • Lamp : Neon for AC; Tungsten bulb for DC
How to order




WATERPROOF COVER
◆For more products and details,pls click the link:http://www.topshallelectronic.com/products.php?bid=35&fid=19
Payment Terms︰TT,Westunion,paypal etc

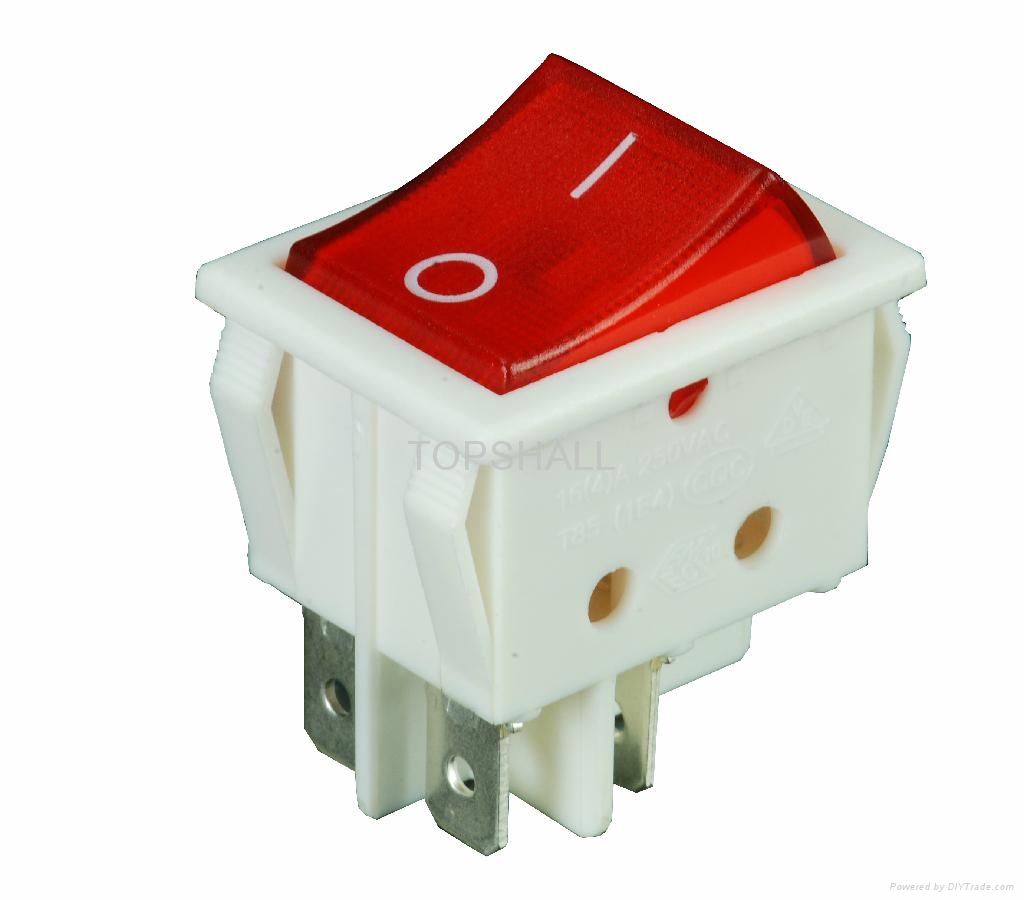

Product Image
