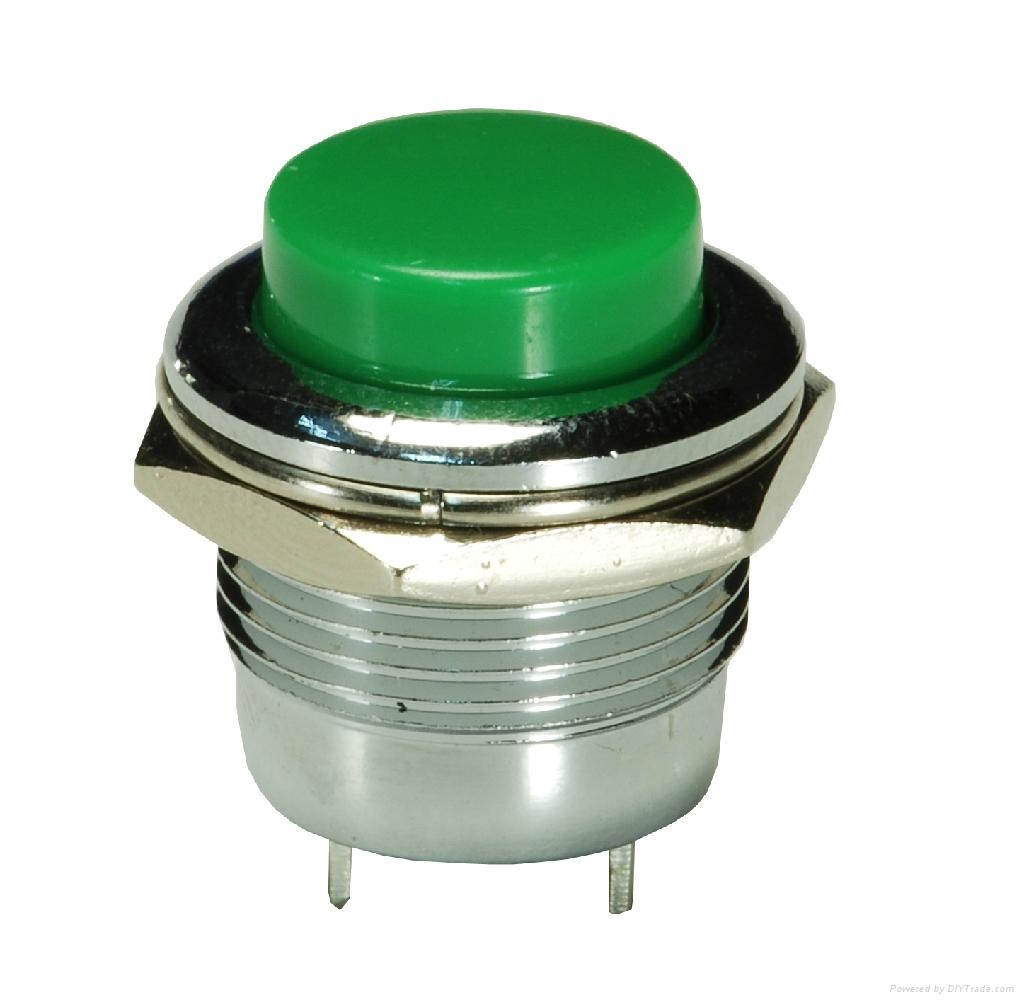

plastic button metal frame switch/plastic push button/plastic button
|
|
| Model No.︰ | PB12-N |
| Brand Name︰ | TS |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | 1000 pc |
|
|
|
|
|
|
|
| Name： |
Plastic push button metal switch |
Operation force： |
250±50gf |
| Mounting hole： |
16mm |
Total travel： |
2.4±0.4mm |
| Rated voltage： |
125/250V |
temperture： |
0℃ to +85℃ |
| Rated current： |
6A/3A |
Operating life： |
10000cycles |
| Insulation resistance： |
100MΩ Min. |
Function: |
OFF-（ON） |
| Contact resistantce： |
100MΩ Min. |
material of Frame： |
Brass Ni plated |
| Dielectric strength： |
1000VAC for 1minute |
Material of cover： |
ABS |
| Material of terminal： |
Brass,silver/tin plated |
material of nut： |
Brass Ni plated |
◆For more products and details,pls click the link:http://www.topshallelectronic.com/products.php?bid=27&fid=16 |
|
|
|
